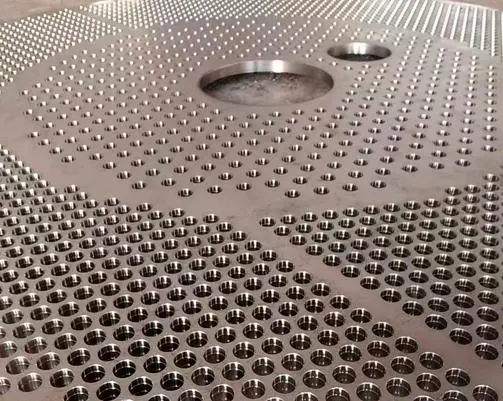

buy titanium sheet

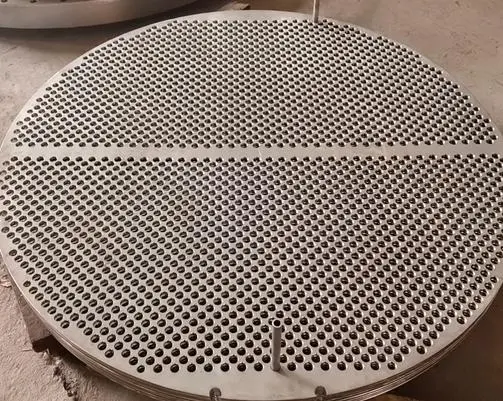

cutting titanium sheet

Titanium Tube Sheet

The titanium tube sheet here refers to specific components used in heat exchangers, especially in applications involving corrosive environments or high temperature conditions. It is a plate-like structure that can serve as a support for multiple titanium tubes.

Titanium tube sheet are usually made of solid titanium sheets, and the thickness of the selected titanium sheet is determined by the design pressure and application conditions of the heat exchanger. The sheet is drilled or machined with holes or holes in it. The positions and spacing of these holes are precise to accommodate the insertion or welding of titanium pipes. Then, the pipes are fixed to the tube sheet through various methods such as welding, rolling, or expansion.


Importance of Titanium Tube Sheet

Titanium tube sheets play a crucial role in heat transfer, allowing fluid or gas to flow through the tubes while maintaining a sealed and secure connection with surrounding structures. Titanium is selected for tube sheet applications due to its excellent corrosion resistance, high strength to weight ratio, and high temperature resistance. The commonly used titanium plate grades for tube sheets are Gr2/Gr7/Gr12 Different grades of titanium sheets are chosen due to the different requirements for corrosion-resistant materials in their application environments. Generally, the corrosion performance of Gr7(Ti-0.2%Pd) titanium palladium alloy is better than that of Gr12 titanium molybdenum nickel alloy, and the corrosion performance of Gr12 titanium sheet is better than that of pure titanium Gr2 titanium sheet.

Titanium Tube Sheet Applications

Titanium tube sheets are widely used in industries such as chemical processing, petroleum and natural gas, power generation, seawater desalination plants, and other applications where corrosion resistance and thermal stability are crucial. The design and specifications of titanium tube sheets may vary depending on specific applications, operating conditions, and industry standards.

Titanium Tube Sheet Gallery

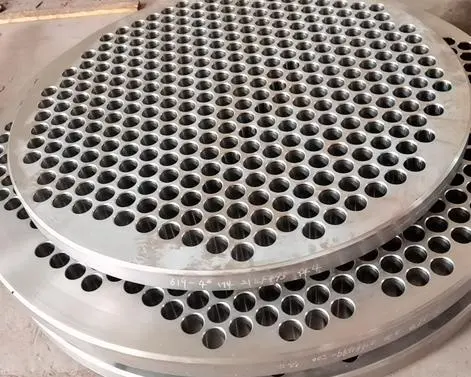

hot forming titanium sheet

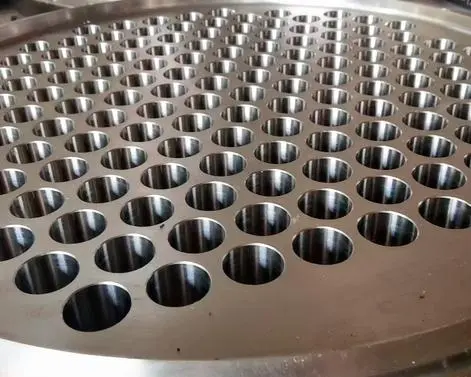

titanium plates supplier

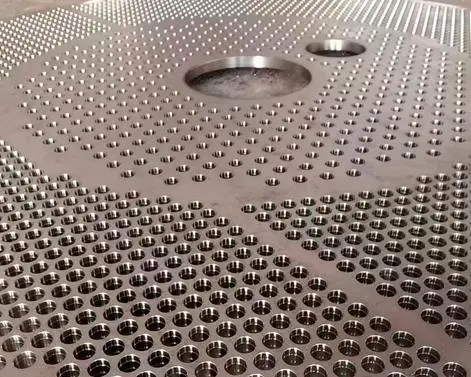

thin titanium sheet
