Types of Titanium Piping

TITANIUM PIPING is light in weight, high in strength and excellent in mechanical properties. Widely used in heat exchange equipment such as shell and tube heat exchangers, coil heat exchangers, serpentine heat exchangers, condensers, evaporators and pipelines. Many nuclear power industries use titanium tubes as their unit standard tubes. According to the material, it can be divided into pure titanium tube and alloy tube. According to the processing technology, it can be divided into seamless pipe and welded pipe. Tube blanks are used as raw materials for the production of finished tubes, and are also used to make tube targets (pure titanium) for vacuum coating. Pure titanium tubes can be used to produce titanium coils, such as heat exchange tubes, heating tubes, condenser tubes, pipes on heat exchangers, etc.


View Detailed Titanium Pipings:

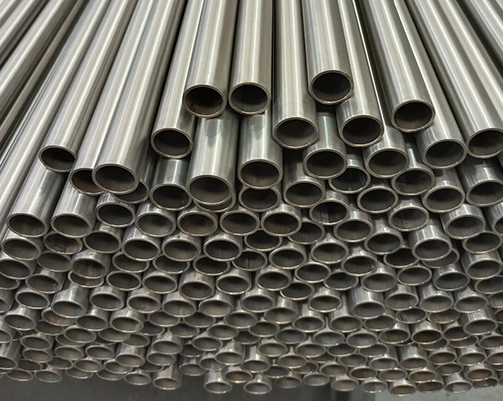

Seamless Titanium Pipe

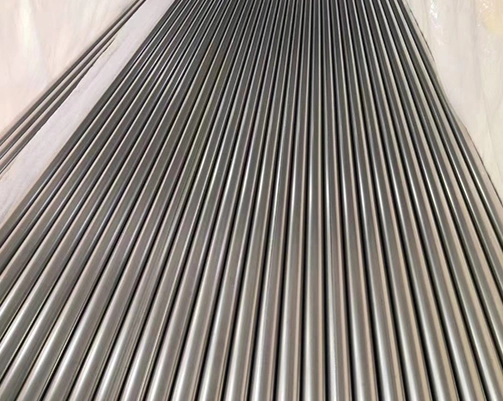

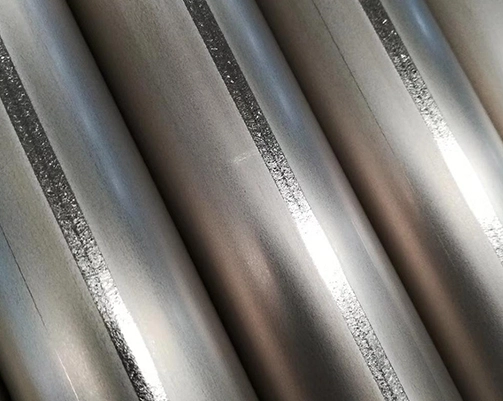

Welded Titanium Pipe

GET A QUOTE

Titanium Piping Specification

StandardsASTM B338, B861, B862, DIN 17 861, AMS 4941, AMS 4942
TypeWelded pipe/seamless pipe
Material GradesCP Grades 1 – 4, Alloys: Grades 5, 7, 9, 12, 24, 26, 29
Seamless pipe size:Outside diameter range: 0.5 – 330mm
Wall height range: 0.4 – 10 mm
Length range: < 15000 mm
Welded pipe size:Outside diameter range: 114 – 5,000 mm
Wall height range: 0.5mm – 50mm
Length range: < 15000 mm


Chemical Composition Of Titanium Piping

Titanium grades 1-4 are pure titanium and the other grades are alloys. Pure titanium is used for its high corrosion resistance, while alloys are used for their extremely high strength-to-weight ratio.

  • GR1 is pure titanium with relatively low strength and high ductility.

  • GR2 is the most commonly used pure titanium. Optimal combination of strength, ductility and weldability.

  • GR3 high-strength titanium, used for matrix plates in shell and tube heat exchangers.

  • GR5 makes the most titanium alloys. Extremely strong. High heat resistance.

  • GR6 has excellent corrosion resistance in reducing and oxidizing environments.

  • GR9 very high strength and corrosion resistance.

  • GR12 has better heat resistance than pure titanium. Applications for Years 7 and 11.

  • GR23 Titanium-6 Aluminum-4 Vanadium ELI (Extra Low Interstitial) alloy for surgical implant applications.


Titanium Piping Production Process

The production process of industrial pure titanium tube is as follows:

Surface treatment - blanking - rolling - degreasing - drying - cutting to length - annealing - straightening - pickling - rolling - finished product degreasing - drying - annealing - straightening Straightening—finished product to length—pickling—inspection—packaging


Quality Assurance Of Titanium Piping

We at Baoji Changsheng Titanium Industry Co., Ltd. are committed to quality assurance, each of our product orders undergoes strict quality control, and each order is accompanied by an independent third-party test and inspection report.
