Titanium Capillary Tube

Normally titanium tubes with an outside diameter of less than 3mm as capillaries. The main raw materials are gr1, gr2, gr5, and gr5 Eli. With the development of the titanium industry, titanium capillaries have become increasingly widely used in medical, aerospace, industrial, and other medical field, such as raw materials for organ bypass in the human body, including stents for vascular and cardiac bypass. If you want to know more about titanium capillary tube price and cost, please do not hesitate to contact the titanium tube supplier.


GET A QUOTE

Titanium Capillary Tube Specifications

The current range of titanium capillary specifications that can be manufactured is as follows, which can be customized according to user requirements.

Size specification

OD. 0.05 ~OD. 3mm, wall thickness 0.015-0.5mm.

Tolerance

Outer diameter Ф ± 0.003mm, wall thickness T ± 0.005mm, length L ± 0.05mm.

Appearance

When observed under a microscope, the inner and outer surfaces of the tube exhibit a uniform metallic luster, without oxidation, hydrogenation discoloration, scratches, deformation, burrs, etc.

Titanium Capillary Tubes Chemical Composition (Main Raw Materials)

MaterialMain Alloying Elements (wt%)Applications
Gr1Ti ≥ 99.0Medical devices, heat exchangers, chemical processing equipment
Gr2Fe (0.8), Si (0.3)General purpose applications requiring good formability and weldability
Gr5 (Ti-6Al-4V)Al (6), V (4)High strength-to-weight ratio, excellent corrosion resistance, used in aerospace, biomedical, and marine applications
Gr5 ELIAl (6), V (4) (with lower oxygen, nitrogen, and hydrogen content)Used in surgical implants due to its biocompatibility

Titanium Capillary Tube Applications

Titanium capillary tubes have become important materials in special industries. Titanium capillaries have emerged in multiple fields, leveraging the multiple advantages of titanium materials. Due to its high strength, corrosion resistance, non-toxicity, and ease of cleaning, titanium has the most important advantage of being close to human bones and having good biocompatibility with human tissues. Raw materials for organ bypass in the human body, including stents for vascular and cardiac bypass, medical microneedles, spinal connectors, and medical equipment connecting catheters. In addition, it is also used for engine heat dissipation pipes in the aerospace industry.

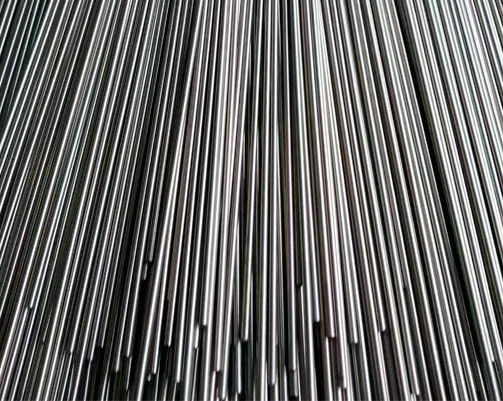

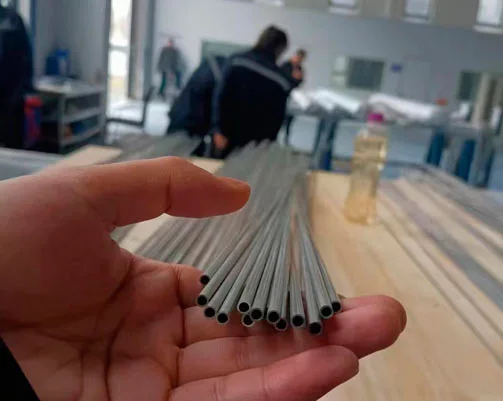

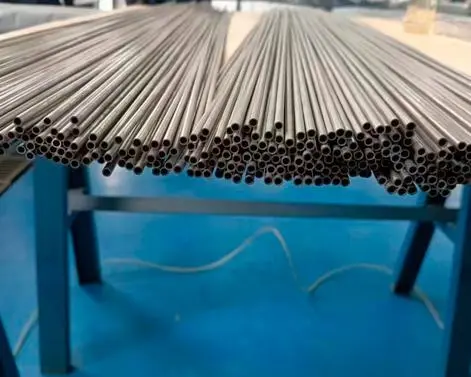

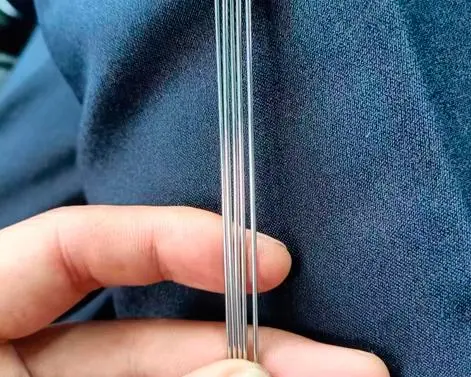

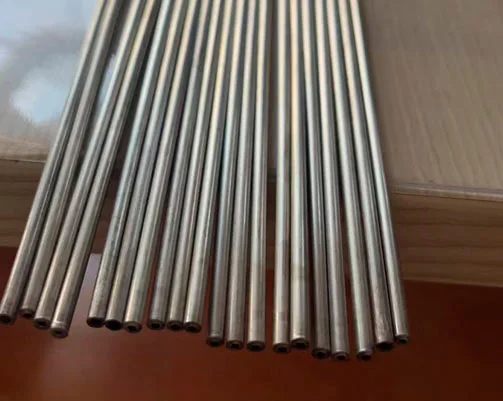

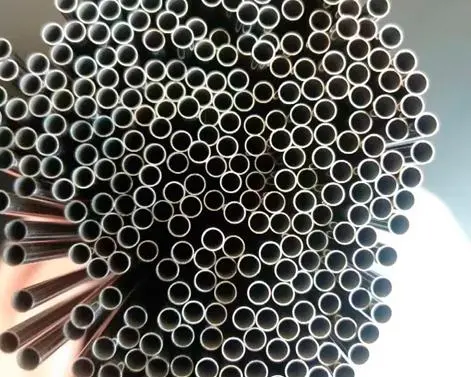

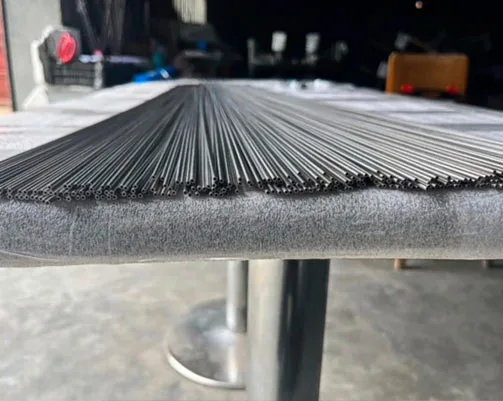

Titanium Capillary Tube Gallery
