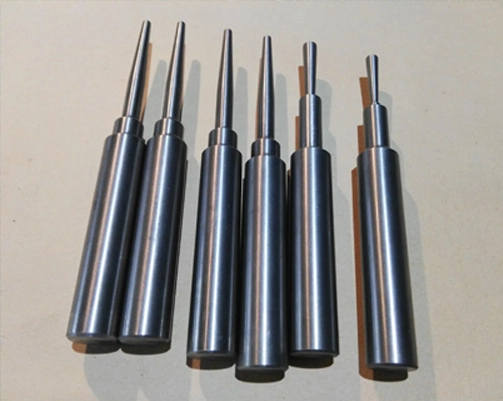

tig welding electrode

Tungsten Electrodes

Tungsten electrodes including Thoriated Tungsten, Ceriated Tungsten,  Lanthanated Tungsten, Zirconiated Tungsten, Yttriated Tungsten and Pure Tungsten electrodes.

Any kind and any size of tungsten electrode are available upon the demands from customers.


GET A QUOTE

Tungsten Electrodes Specifications

Standards: ISO 6848 ANSI/AWS A5.12/A5.A2M-98

Size:

  • Diameter: 0.5-25mm

  • Length: 150mm, 175mm, 178mm, any length requested from customer.


Recommended Tungsten Electrodes for Various Welding Currents:

Diameter of Electrode

DC(A)

AC(A)

in

mm

Straight Polarity(-)

Reverse Polarity(+)

Unbalanced Waves

Balanced Waves

0.04"

1.0

15-80


10-80

20-60

1/16"

1.6

60-150

10-18

50-120

40-100

0.079"

2.0

100-200

12-20

70-160

60-130

3/32"

2.4

150-250

15-25

80-200

80-150

1/8"

3.2

220-350

20-35

150-270

120-200

5/32"

4.0

350-500

35-50

220-350

170-260

3/16"

4.8

420-650

45-65

240-420

220-340

1/4"

6.4

600-900

65-100

360-560

250-450



Tungsten Electrodes Types

Thoriated Tungsten Electrodes

Thoriated Tungsten is the most commonly used tungsten in America and some other countries and is a good general use tungsten. Especially, it performs well when overloaded with extra amperage. However,since it is a low-level radioactive hazard many users have switched to other alternatives.

This tungsten is used primarily for DC welding of carbon & stainless steels, nickel alloys and titanium,etc.

Designation

Oxide Additive

Impurities Content%

Tungsten Content%

Color Sign

Category

Content%


WT10

ThO2

0.80-1.2

<0.20

balance

yellow

WT20

ThO2

1.70-2.20

<0.20

balance

red

WT30

ThO2

2.80-3.20

<0.20

balance

purple

WT40

ThO2

3.80-4.20

<0.20

balance

orange


Ceriated Tungsten Electrodes

Ceriated Tungsten is a non-radioactive material. It is known to be especially good for DC welding with low amperage because it starts very easily at low amps and usually requires about 10% less amps to operate than thoriated material. It is very popular to be used for the welding of orbital tube, pipe, very small parts, short welding cycles and also where a specific number of welds are called and then the electrode is to be replaced.

Designation

Oxide Additive

Impurities Content%

Tungsten Content%

Color Sign

Category

Content%


WC20

CeO2

1.8-2.2

<0.20

balance

Grey


Lanthanated Tungsten Electrodes

Lanthanated Tungsten is a non-radioactive material with good welding performance. Its electric conductivity is most closed to that of 2% Thoriated Tungsten. Welders can easily replace Thoriated Tungsten Electrodes with Lanthanated without any changes of welding program. In Europe and Japan, Lathanated Tungsten has been the most popular alternative to 2% Thoriated Tungsten for most applications.

This tungsten is used primarily for DC welding but will also show good results for AC welding.

Designation

Oxide Additive

Impurities Content%

Tungsten Content%

Color Sign

Category

Content%


WL10

La2O3

0.8-1.2

<0.20

balance

black

WL15

La2O3

1.3-1.7

<0.20

balance

golden yellow

WL20

La2O3

1.8--2.2

<0.20

balance

sky blue


Zirconiated Tungsten Electrodes

Zirconiated Tungsten has good performance in AC welding. It balls up well in AC welding and has a more stable arc than pure tungsten. Especially with excellent performance in high load AC welding, it is not replacable by any other electrodes. It also resists contamination well in AC welding.

Zirconiated Tungsten is most commonly used for AC welding of aluminum and magnesium alloys.

Designation

Oxide Additive

Impurities Content%

Tungsten Content%

Color Sign

Category

Content%


WZ3

ZrO2

0.2-0.4

<0.20

balance

brown

WZ8

ZrO2

0.7-0.9

<0.20

balance

white


Pure Tungsten,Yttriated Tungsten and Composite Electrodes

Pure Tungsten , the least expensive of all tungsten electrodes, is generally used in the AC welding of aluminum and magnesium alloys

Yttriated Tungsten is primarily used in military and aviation industry with narrow arc beam,high compressing strength,highest welding penetration at medium and high current.

The performances of Composite Electrodes in welding can be much improved by adding two or more rare earth oxides which are mutually completementary.

Type of Electrode

Designation

Oxide Additive

Impurities Content%

Tungsten Content%

Color Sign

Category

Content%


Pure Tungsten Electrodes

WP

--

--

<0.20

balance

green

Yttriated Tungsten Electrodes

WY20

Y2O3

1.8-2.2

<0.20

balance

blue

Composite Electrodes

--

--

1.5-3.0

<0.20

balance

--
