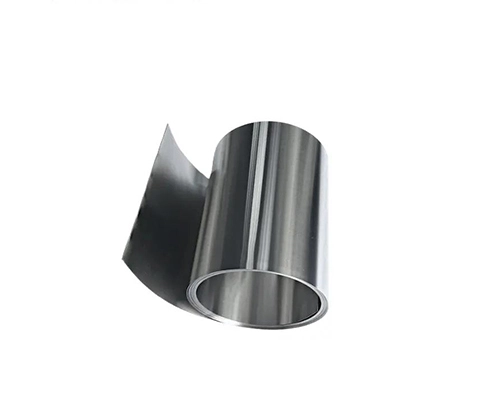

niobium foils

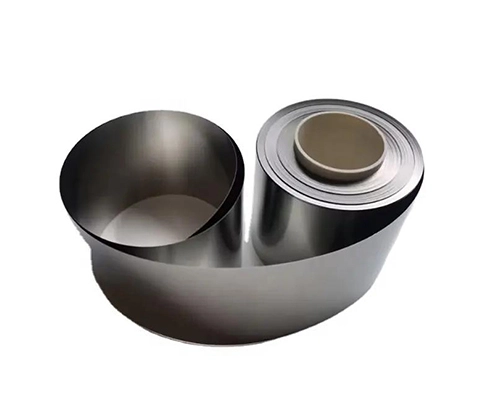

niobium foil

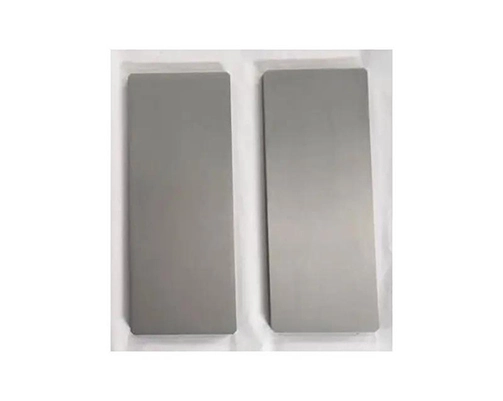

niobium sheet

Niobium Sheet & Foil

Niobium is a kind of silver grey rear high-melting-point metal with relatively soft texture and ductility. At normal temperature, niobium cannot react with the air, and cannot be completely oxidized in oxygen in the red hot state. Niobium can be directly and chemically combined with sulfur, nitrogen and carbon at high temperature. Niobium cannot react with inorganic acid or alkali, and is insoluble in aqua regia but is soluble in hydrofluoric acid. Niobium features extremely good superconductivity, high melting point, corrosion resistance, wear resistance, etc.

GET A QUOTE

Niobium Sheet & Foil Specification

Material: RO4200-1, RO4210-2

Standard: As per ASTM B393-98
Purity: ≥99.9%, 99.95%, 99.99%, 99.995%

Size


Thickness(mm)

Width (mm)

Length (mm)

Foil

0.03-0.09

30-300

>50

Sheet

0.1-0.5

30-800

30-2000

Board

0.5-10

50-1000

50-3000


Chemical composition

Element

Type 1 (RO4200)

Type 2 (RO4210)

Type 3 (RO4251)

Type 4 (RO4261)

%wt., no more than(Max.)

C

0.01

0.01

0.01

0.01

N

0.01

0.01

0.01

0.01

H

0.0015

0.0015

0.0015

0.0015

O

0.015

0.025

0.015

0.025

Zr

0.02

0.02

0.8~1.2

0.8~1.2

Ta

0.1

0.2

0.1

0.2

Fe

0.005

0.01

0.005

0.01

Si

0.005

0.005

0.005

0.005

W

0.03

0.05

0.03

0.05

Ni

0.005

0.005

0.005

0.005

Mo

0.010

0.010

0.010

0.010

Hf

0.02

0.02

0.02

0.02

Nb

balance

balance

balance

balance

Note 1: The chemical report is the data of casting ingot.

Note 2: We can produce tailored to customers' requirements.


Mechanical requirements (annealed condition)

Grade

Tensile strength δbpsi (MPa) ≥

Yield strength  δ0.2 psi (MPa) ≥

Elongation in 1"/2" gage length % ≥

>=0.010

<0.010

RO4200-1

RO4210-2

18000 (125)

12000 (85)

25

20

Special requirements to be agreed on by the supplier and buyer of negotiations.



Niobium Sheet & Foil Applications

Iron & steel, superconducting materials, aerospace, atomic energy and other fields.

Magnetron sputtering niobium targets in the electronic industry.
